72W Industrial Power Supply

Ask Lasest Price
Brand Name :	HL
Model Number :	HL-72-12
Certification :	ISO9001,ROHS,CE
Price :	Negotation
Payment Terms :	L/C, T/T
Supply Ability :	1000000PCS per Month
Delivery Time :	15 Work days

Add to Cart

Product Details
Company Profile

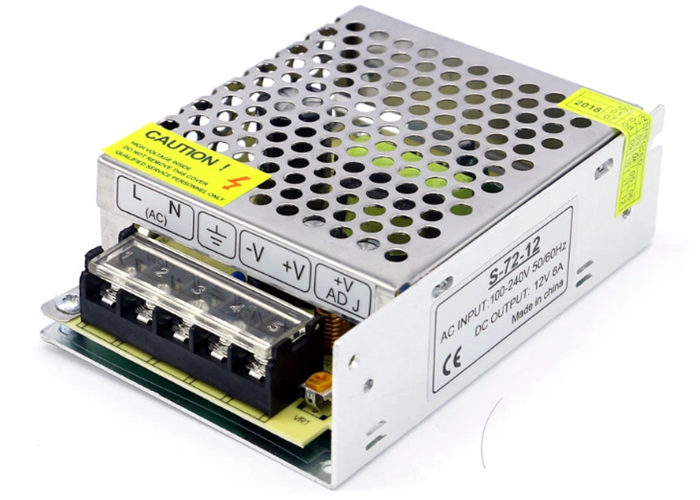

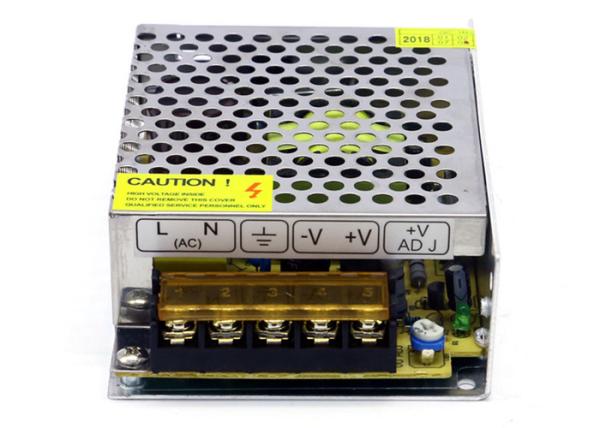

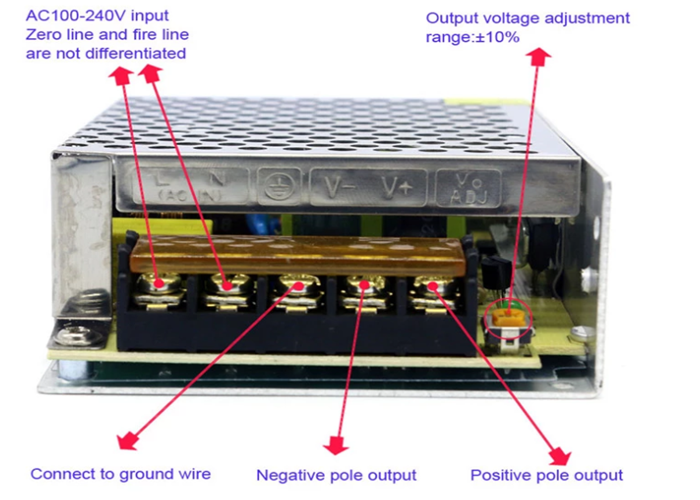

72W Industrial Power Supply

Dc 12V 6A 72W Metal Case Constant Voltage Single Led Power Supply

Product Features:

1.High efficiency, long life and high reliabili

2.Low dc ripple, high efficiency

3.low operation temperature & long performance life

4.input voltage suitable for the world

5.Excellent insulation property, high dielectric strength

6.100% full-load burning test

7.2 years warranty

Product parameters

Model		HL-72-12
Input	AC input voltage range(V)	AC100~240V
	AC Input current(max)	1.5A /AC220V;
	Frequency (Hz)	50/60Hz
	Efficiency	85% Typ(230VACFull Load)
	Inrush current(A)	Cold-start 20A/230V
	Leakage current(mA)	<3mA/240VAC
Output	Output Voltage(V)	12V DC
	Voltage Range	+5%,-5%
	Output Current(A)	6A
	Current Range (A)	0-6A
	Rated Power(W)	72W
	Start time,hold-up time(ms)	Ton≤1000ms,Td≥20ms @230Vac Full Load
	Rise time(ms)	Typ:20ms @230Vac Full Load
	Ripple/Noise(mVp-p)	120mVp-p
Environment	working Temperature (°C)	-40°C - +65°C(refer derating curve)
	Storage Temperature(°C)	-20°C - +60°C
	Humidity	20% - 90% RH non condensing
Protection	Over voltage Protection	>115%-135% Rated output voltage
	Over load Protection	>105%-150% Auto recovery
	Short circuit Protection	Latched
Others	Size LWH(cm)	117.83.6cm
Others	Weight	250g
