Position Diameter 18MM IP65 Ultrasonic Proximity Switch

Ask Lasest Price
Brand Name :	HL
Model Number :	HL1000-18
Certification :	ISO9001,ROHS
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	100000PCS per Month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

Position Diameter 18MM IP65 Ultrasonic Proximity Switch

Ultrasonic proximity switch High Accuracy Ultrasonic Sensor Diameter 18MM

OVERVIEW

Ultrasonic sensors are widely used in harsh and complex environments with excellent performance.
Can be used to detect some reflective surface properties of the material or need to accurately measure the occasion.
The main features are:
1. Short wavelength and high precision
2. It is not affected by the color and material of the target
3. No contact measurement, long life
4. Not affected by ambient noise and dust in the air
5. Suitable for liquid, solid and small particle materials

Application scenarios
1. Smart city
2. Logistics and warehousing industry
3. Rail transit
4. Machinery manufacturing
5. Printing industry
6. Textile industry
7. Electronics industry
8. Material delivery system
9. Packaging industry

Electrical parameters
Model	HL1000-18GK85-US	HL1000-18GK85-I	HL1000-18GK85-E4	HL1000-18GK85-E5	HL1000-18GK85-DT
Detection range	90-1000mm	90-1000mm	90-1000mm	90-1000mm	90-1000mm
Adjustable range	100-1000mm	100-1000mm	100-1000mm	100-1000mm	100-1000mm
Blind area	0-90mm	0-90mm	0-90mm	0-90mm	0-90mm
Standard target plate	100mm × 100mm	100mm × 100mm	100mm × 100mm	100mm × 100mm	100mm × 100mm
Transducer frequency	About 200 KHZ	About 200 KHZ	About 200 KHZ	About 200 KHZ	About 200 KHZ
Response latency	About 100 ms	About 100 ms	About 100 ms	About 100 ms	About 100 ms
Working voltage	5V DC,ripple factor10%pp	5V DC,ripple factor10%pp	9-30V DC,ripple factor10%pp	9-30V DC,ripple factor10%pp	9-30V DC,ripple factor10%pp
No-load current	<20mA	<20mA	<20mA	<20mA	<20mA
The output type	0~5V; 0-10V1	4...20mA	NPN switch output, normally on/normally off	PNP switch output, normally on/normally off	Digital quantity 2
Repeat accuracy	≤0.3%Full scale value	0.1%Full scale value	≤0.3%Full scale value	≤0.1%Full scale value	≤0.1%Full scale value
Resolution ratio	≤0.1%Full scale value	≤0.1%Full scale value	≤0.1%Full scale value	≤0.1%Full scale value	≤0.1%Full scale value
The load impedance	≥1KOhm	≤500Ohm	100mA	100mA	/
Environment temperature	-20℃~70℃	-20℃~70℃	-20℃~70℃	-20℃~70℃	-20℃~70℃
Storage temperature	-30℃~85℃	-30℃~85℃	-30℃~85℃	-30℃~85℃	-30℃~85℃
Temperature drift	≤2%Full scale value	≤2%Full scale value	≤2%Full scale value	≤2%Full scale value	≤2%Full scale value
Protection grade	IP65	IP65	IP65	IP65	IP65

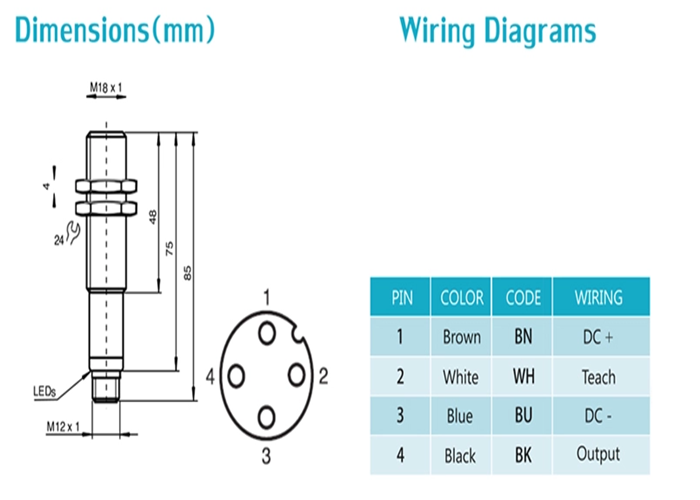

Connection method	V15 connector (M12 × 1),4 core	V15 connector (M12 × 1),4 core	V15 connector (M12 × 1),4 core	V15 connector (M12 × 1),4 core	V15 connector (M12 × 1),4 core
Attention 1. When the output is 0-10v, the input voltage must be greater than 15V; 2. Digital quantity adopts TTL level RS232 protocol, and the output is integer digital quantity distance with unit of 0.1mm
