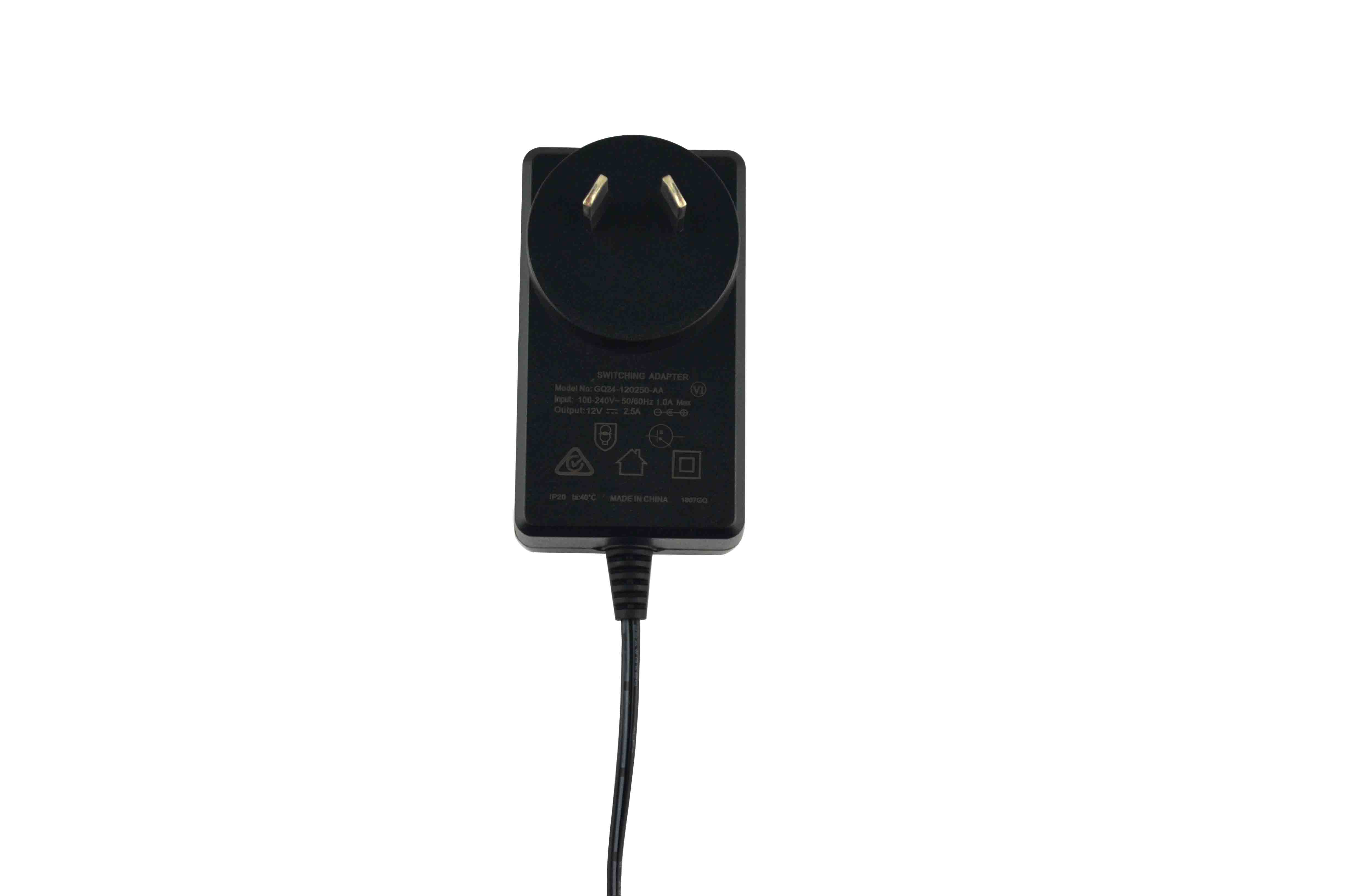

24W Plug-in Wall Switching Power Supply Adapter GQ24(Household
Electric Appliance)
Overview
Place of Origin:Chengdu,China
Model Number:GQ24
Appearance:L:58.5* W:27* H:42.5mm
AC Input Voltage:AC90V~264V 47HZ~63HZ
AC Input Current:1Amax,@100VAC/60HZ full load test
AC Input Surge Current:60A(RMS)maximum for AC 230V/50HZ full load
test
Maximum Power:24W
Input Voltage:AC90V-264V 50HZ/60HZ
Output Load:0%~100%
Efficiency:Five or Six Level energy efficiency
Working Temp:0℃~45℃
Plug:Europe,America,China,Australia,Japan, South Korea and Taiwan
Insulation Impedance:≥30MΩ@500VDC;60S
Storage Humidity:5%~90%RH Condensation
Product Features
Temperature rise and EMI performed well
High precision output OVP,OCP,SCP reliable protection
Effectively protect the power supply and user safety of terminal
equipment
Specifications
Output line specification,conventional output
wiringUL2468#,UL1185#,UL2464#,
DC plug specifications, output ripple voltage, efficiency, mean
time between failures, lightning surge, static standard, withstand
voltage and other attributes can be designed according to customer
requirements.
OUR ADVANTAGES
Appearance Exquisite Practical
With a variety of pin input, black and white optional
Safety certification complete
High precision output OVP,OCP,SCP protection much safe and reliable
High quality&design
Standby power consumption is less than 75mW
its energy efficiency meets the energy efficiency requirements of
the United States level 6 and the European Union CoC stage 2.
FAQ
Q: What is the main product of your company ?
A: AC Switching Power Adapters.
Q: What certificates do you have ?
A: Our products have completely been approved CE,ROHS,ISO9001,etc.
In order to make you fully understood the quality of our
products,we would provide you with related certifications on your
request.
Q: Would you give me more details about the price of your products
?
A: We believe our quality and price are very competitive in
worldwide market and We promise to offer you best cost-efficient
products with higher quality.
