400W Power Supply Open Type AC/DC Power
Overview
Place of Origin:Chengdu,China
Model Number:GQ400-20P02
Appearance:L:180* W:200* H:45mm
AC Input Voltage90Vac-264Vac
AC Input Current:6Amax
AC Input Surge Current:≤100A
Rated Total Output Power:420W(12Vdc-24W,54Vdc/395W)
Output Voltage:54.5Vdc+12Vdc
Output Current:7.2A+2A
Efficiency:≥89%
Insulation Impedance:≥30MΩ@500VDC;60S
Operating Humidity:5%RH~90%RH Condensation
Storage Humidity:5%RH~90%RH Condensation
Product Features

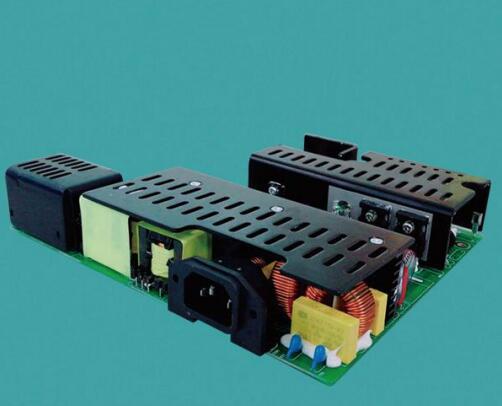

GQ400-20P02 is open typeAC/DC power ,90Vac-264Vac wide voltage
input,54V and 12V two-way isolated output.
Rated total output power 420W(12Vdc-24W,54Vdc/395W),
Power supply needs air colling to dissipate heat.
With output short circuit protection, output over-current
protection, output over-voltage protection, over-temperature
protection.
The charger is designed in strict accordance with safety
regulations and meets the safety standards of charger equipment.
Specifications
Input line specification,output ripple voltage, efficiency, mean
time between failures, lightning surge, static standard, withstand
voltage and other attributes can be designed according to customer
requirements.
OUR ADVANTAGES
Beautiful and generous appearance.
Stable design scheme, excellence in the process of production
process standards, the manufacture of high quality products.
Application field is POE power supply.
FAQ
Q: What is the main product of your company ?
A: Switching Power Adapters.
Q: What certificates do you have ?
A: Our products have completely been approved CE,ROHS,ISO9001,etc.
In order to make you fully understood the quality of our
products,we would provide you with related certifications on your
request.
Q: Would you give me more details about the price of your products
?
A: We believe our quality and price are very competitive in
worldwide market and We promise to offer you best cost-efficient
products with higher quality.
