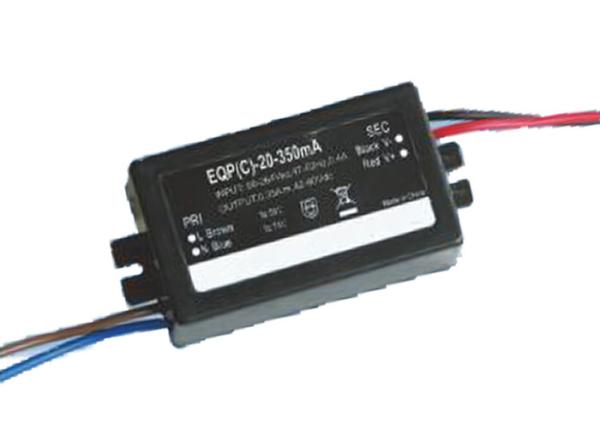

Constant Current Source Molded Case Waterproof 15W-20W LED Switching Power Supply

Product features

• Universal full voltage input
• Protection function: short circuit, overload, overvoltage
• Internal active power factor correction function, PF>0.92 (full load)
• No-load power consumption < 0.5w, start-up time <0.5s
• IP66 protection level
• UL1310 Class 2 power supply
• Natural air cooling
• Suitable for all kinds of LED lighting and LED electronic display
• 3 years warranty

Technical specifications

Input voltage 90Vac~264Vac
Input frequency 47Hz~63Hz
Input current 0.4A largest
Inrush current Maximum 30A,230Vac(cold start)
Starting time Maximum 0.5s (rated input voltage)
Constant current accuracy Maximum ±5%
Pressure I/P-O/P: 3750Vac
Operating temperature -35°C~+60℃
The derating curve Output full load at 50°C,Derogate at 60°C to 80% load output
Storage temperature -40℃~+85℃
Protection function Short circuit, overload, over voltage
Overcurrent protection 95%- 105% fixed current limit, automatic recovery
Safety standards UL8750, UL1310 Class 2, EN61347-1, EN61347-2-13, UL1012,UL60950
Electromagnetic compatibility standard EN55015, IEC61000-3-2, 3,EN61000-4-2,3,4,5,6,8,11, EN61547

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it

Model in the list

Chengdu Hao Li Electronic Technology Co., Ltd. is mainly engaged in the application design, development, production and sales of power supply and ultrasonic products. It has nearly 20 years of experience. It has in-depth cooperation with University of Electronic Science and Technology and Sichuan University. The products are mainly sold to Europe, the United States, Asia and other countries. The company has strong production capacity in power drive and intelligent control, application design of ultrasonic products, and can solve customization problems for customers.
