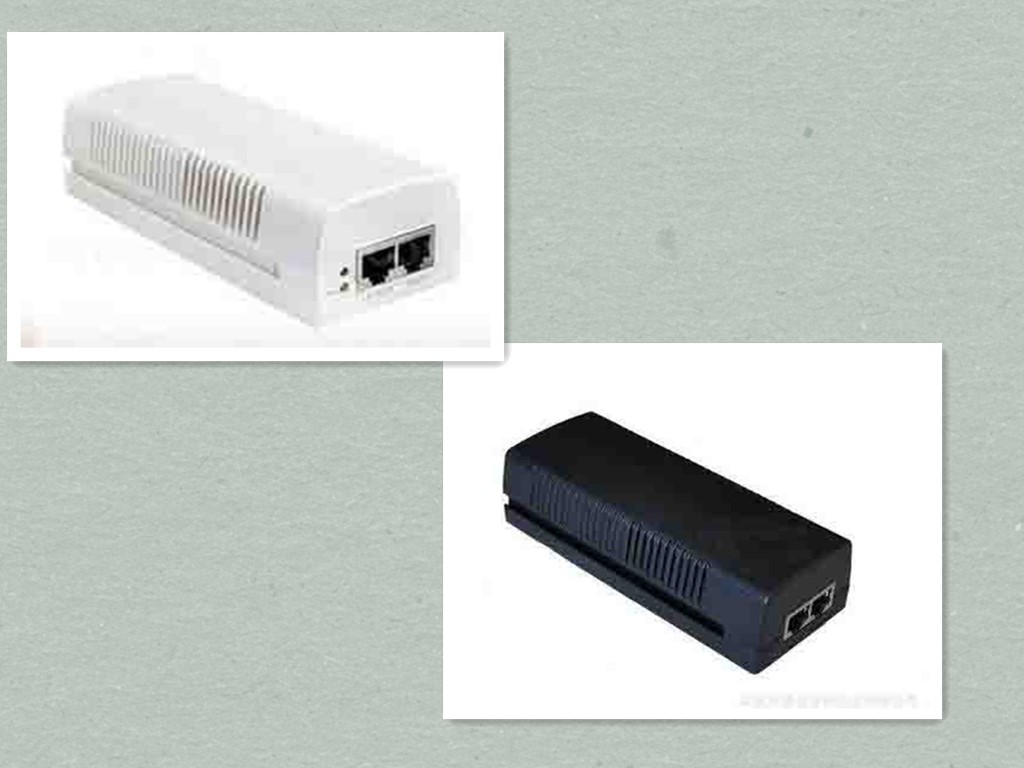

POE Power Supply 30W Gigabit Span for Jumper Power Supply Equipment
Overview
Place of Origin:Chengdu,China
Model Number:GQ3001GIN
Appearance:142*60*32mm
AC Input Voltage:AC100V~240V 50HZ~60HZ
AC Input Current:0.5Amax,@100VAC/60HZ full load test
AC Input Surge Current:70A(RMS)maximum for AC 230V/50HZ full load
test
Output Voltage:DC55V±5%,Input VoltageAC230V/50HZ full load test
Output Current:0.65A,AC 100-240V 50/60HZ
Working Temp:0℃~40℃
Storage Temperature:-40℃~70℃
Operating Humidity:10%RH~90%RH Condensation
Product Features
Independent research and development of jumper power supply
equipment, fully in line with IEEE 802.3af/at standards.
The power load can be transmitted on the network cable,and the
maximum transmission distance is 100 meters.
Automatic detection and identification of IEEE 802.3af/at standard
electrical equipment, and automatic matching output power to its
power supply.
For unsupported terminal PoE function equipment, it can be used
with PoE separators to expand the traditional power line network
and reduce the use of power lines.
Specifications
Output short circuit protection
The power output in the state of shorts without damage, the power
will automatically resume work after the removal of abnormal load
conditions.
Mean time between failture is at least 50,000 hours.
LED indicator light individe PER(green) and LNK/ACT(green)
FAQ
Q: What is the main product of your company ?
A: Switching Power Adapters.
Q: What certificates do you have ?
A: Our products have completely been approved CE,ROHS,ISO9001,etc.
In order to make you fully understood the quality of our
products,we would provide you with related certifications on your
request.
Q: Would you give me more details about the price of your products
?
A: We believe our quality and price are very competitive in
worldwide market and We promise to offer you best cost-efficient
products with higher quality.
