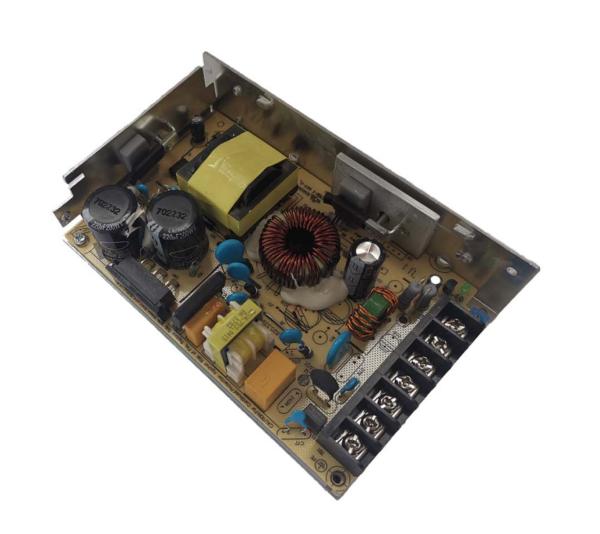

70W 230V AC Input Only Panel Mount Power Supply Metal Case 100 % Full Load

Ask Lasest Price
Brand Name :	HAOLI
Certification :	CE，ISO9001，ROHS
Payment Terms :	L/C, D/A, D/P, T/T
Delivery Time :	10 work days
Price :	Negotiation

Add to Cart

Product Details
Company Profile

70W 230V AC Input Only Panel Mount Power Supply Metal Case 100 % Full Load

70W Single Output (230V AC input only) Industrial Power Supply

Product features

230VAC input only

Power on indication

Metal case
Protections: Overload / Short circuit

Battery reverse charge protection

100% full load burn-in test

1 year warranty

Specifications

Input voltage 195VAC~253VAC

Input frequency 50HZ~ 60Hz

Inrush current 40A @ 220VAC full load cold start

Hold up time ≥20ms @ 230VAC full load

Overload protection 150% of the rated output power

Operating temperature -20℃~40℃

Safety standard EN60950, GB4943-2001

EMC standard EN55022 Class B, EN55024

Withstand voltage I/P-O/P: 3kVAC, 1min

I/P-FG: 1 .5kVAC, 1min

O/P-FG: 0.5kVAC, 1min

Weight 0.45kg/pcs

70W 230V AC Input Only Panel Mount Power Supply Metal Case 100 % Full Load

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

P/N	Output	Tol.	R&N	Effi.	Load Regulation
ESP-70-13.8	13.8V,5A	±3%	120mV	76%	±2%
ESP-70-27.6	27.6V,2.5A	±3%	240mV	80%	±2%

FAQ

Q1: How many year warranty of your Led driver?
A: One years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3 : Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it
