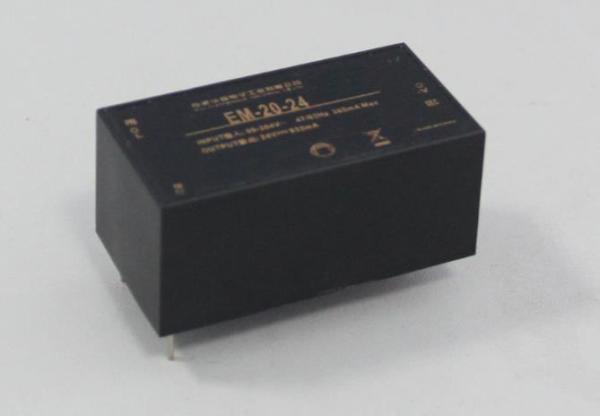

20W Single Output (AC-DC) Industrial Power Supply
Product features
- Universal AC input / full range
- Compact, High efficiency
- Regulated output, low ripple, low noise
- Fully encapsulated plastic case
- 3 years warranty
Specifications
Input voltage 90VAC~264VAC or 100VDC~375VDC
Input frequency 47HZ~440Hz
Inrush current 50A @ 230VAC
30A@ 115VAC (<2ms)
Voltage set point accuracy ±2%
Line regulation ±0.5% (typ.)
Short circuit protection Hiccup technique, auto-recovery
Overload protection Hiccup technique, auto-recovery
I/O isolation voltage 3000VAC
Operating temperature -25℃~+70℃
Storage temperature -40℃~+85℃
Temp. Coefficient ±0.02%/℃
EMI EN55022 Class B
EMS EN55024
Weight 110g
Our Advantages
OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of
switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times
testing
With high reliability,105℃long life capacitor,can withstand
300VAC,input voltage 5 seconds without damage
| P/N | Power max | DC Output | R&N | Effi. | Load Regulation |
| EM-20C-3.3 | 14.85W | 3.3V,4.5A | 47&67mV pk-pk | 75% | ±1% |
| EM-20C-5 | 20W | 5V,4A | 50&75mV pk-pk | 79% | ±1% |
| EM-20C-7.35 | 20W | 7.35V,2.73A | 55&87mV pk-pk | 82% | ±1% |
| EM-20C-9 | 20W | 9V,2.23A | 58&95mV pk-pk | 82% | ±1% |
| EM-20C-12 | 20W | 12V,1.67A | 64&110mV pk-pk | 83% | ±1% |
| EM-20C-15 | 20W | 15V,1.34A | 70&125mV pk-pk | 83% | ±1% |
| EM-20C-24 | 20W | 24V,0.84A | 88&170mV pk-pk | 84% | ±1% |
FAQ
Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding
aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with
large order,we can apply for it.
