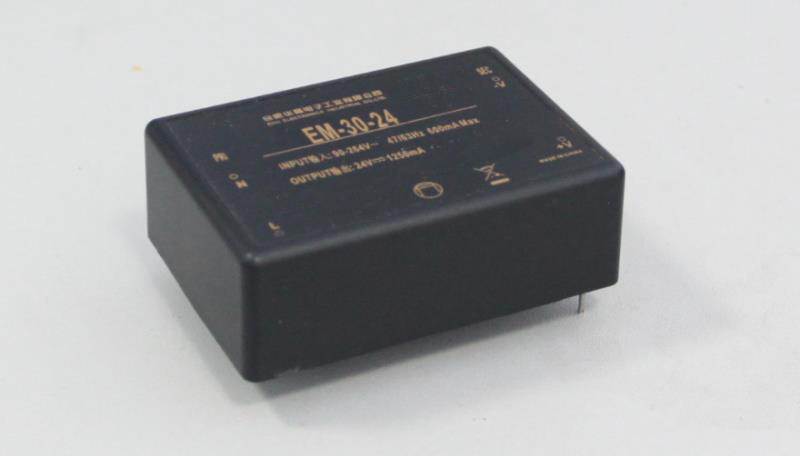

30W Single Output (AC-DC) Industrial Power Supply

Product features

• 90VAC~305VAC input
• Compact
• High efficiency up to 90%
• Standby power consumption<0.3W
• Fully encapsulated plastic case
• 3 years warranty

Specifications

Input voltage 90VAC~ 305VAC or 120VDC~430VDC

Input frequency 47HZ~63Hz

Inrush current 60A @ 230VAC

30A@ 115VAC (<2ms)
Voltage set point accuracy ±2%

Line regulation ±0.5% (typ.)
Short circuit protection Hiccup technique, auto-recovery

Overload protection Hiccup technique, auto-recovery

I/O isolation voltage 3000VAC

Operating temperature -40℃~+70℃

Storage temperature -40℃~+85℃

Temp. Coefficient ±0.02%/℃

EMI EN55022 Class B

EMS EN55024

Weight 130g

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.

Chengdu Hao Li Electronic Technology Co., Ltd. is mainly engaged in the application design, development, production and sales of power supply and ultrasonic products. It has nearly 20 years of experience. It has in-depth cooperation with University of Electronic Science and Technology and Sichuan University. The products are mainly sold to Europe, the United States, Asia and other countries. The company has strong production capacity in power drive and intelligent control, application design of ultrasonic products, and can solve customization problems for customers.
