Over Current Protection Open Frame Switching Power Supply 12W Power 2 Years Warranty

Ask Lasest Price
Brand Name :	HAOLI
Certification :	CE，ISO9001，ROHS
Model Number :	OP
Price :	Negotiation

Add to Cart

Product Details
Company Profile

Over Current Protection Open Frame Switching Power Supply 12W Power 2 Years Warranty

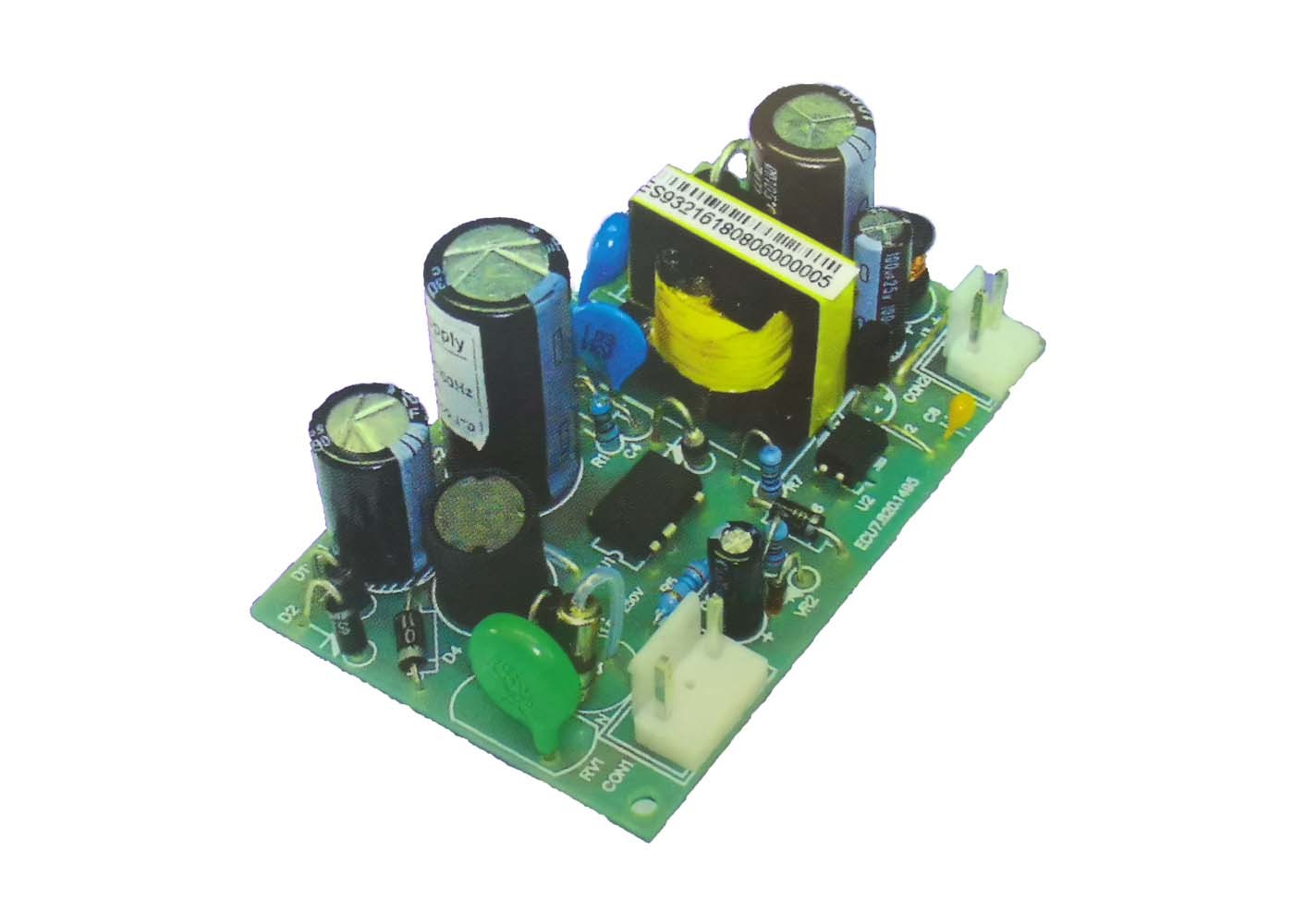

12W Single Output Industrial Power Supply (OP Series)

Product features

Universal AC input / full range
Over current / Over voltage protection adjustable
Protections: Over temperature / Short circuit / Short voltage
100% full load burn-in test
2 years warranty

Specifications

Input voltage 90VAC~264VAC

Input frequency 47HZ~63Hz

Inrush current 50A @ 220VAC

30A@110VAC
Output voltage 12VDC

Hold-up time ≥20ms @ 230VAC full load
Overload protection 105%~180%

Operating temperature 0℃~40℃

Storage temperature -40℃~70℃

R&N 150mV
Efficiency ≥75%
Safety standards UL1950-1
EN60950, TUV
EMC standards EN55022 Class B

Withstand voltage I/P-O/P: 3kVAC, 1min

Weight 0.05kg/pcs

Over Current Protection Open Frame Switching Power Supply 12W Power 2 Years Warranty

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it
