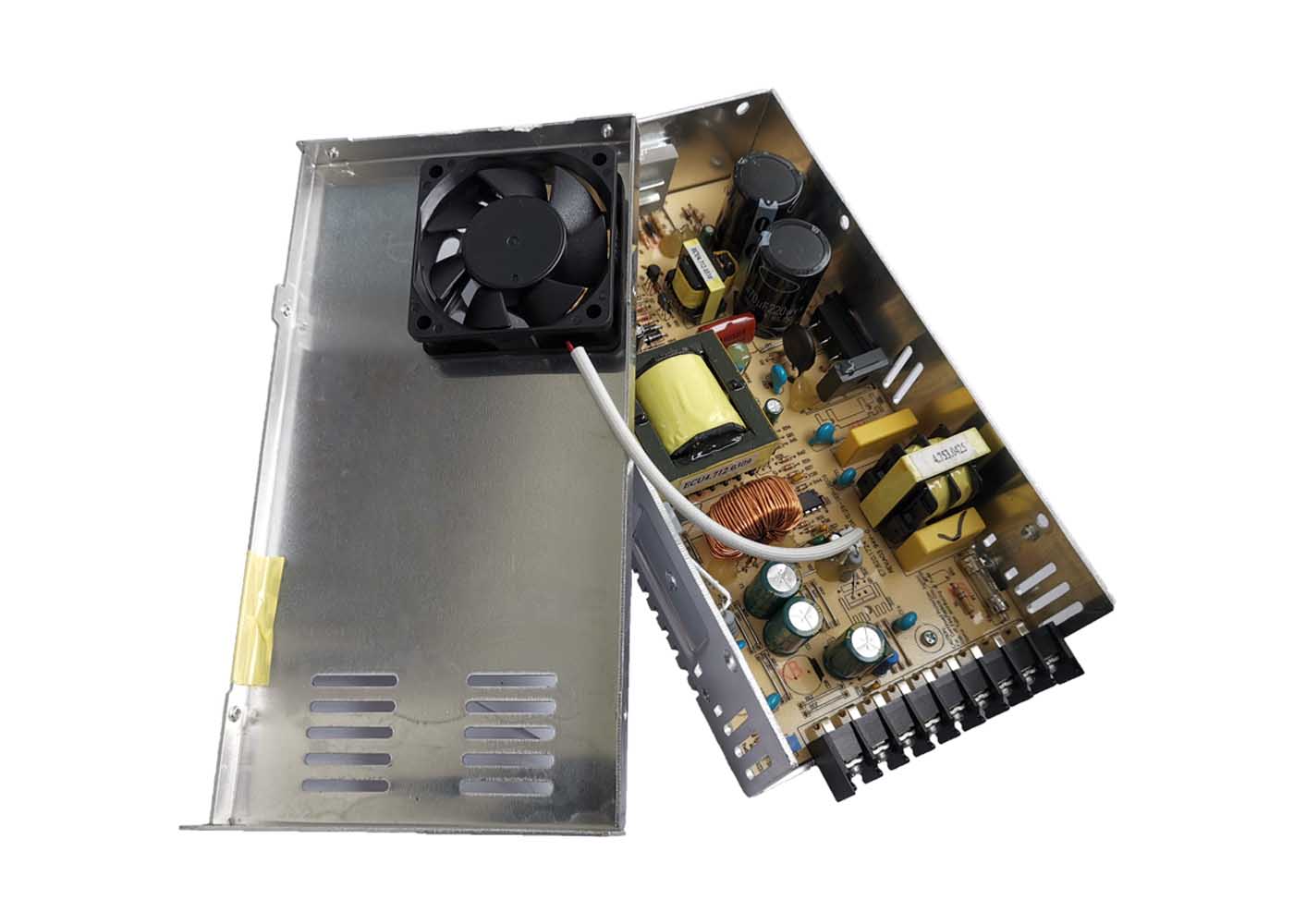

350W Single Output Industrial Power Supply (ESP Series)

Overview

Place of Origin:Chengdu, China
Model Number:ESP
Output Type:Single
Weight:0.51kg/pcs
Type:Constant Voltage
Protection:Overload/Over voltage/Short circuit
Input Voltage:88VAC~132VAC,176VDC~264VDC
Input Frequency:47HZ~63HZ
Warranty:2 Years
Size:159mm×98mm×38mm
Working Temp.:-20℃~60℃

Specifications

Input voltage 88VAC~132VAC, 176VAC~264VAC

Input frequency 47HZ~63HZ

Inrush current <50A full load cold start

Hold up time ≥20ms @ 230VAC full load
Overload protection 120%~150%

constant current limiting, auto-recovery
Over voltage protection 115%~145%

Operating temperature -20℃~70℃(refer to output load derating curve)

Safety standard EN60950-1

EMC standard EN61000-6-2

EN61000- -4- -2,3,4,5,6,8,11

EN55022 Class B
Withstand voltage I/P-O/P: 1.5kVAC, 1min

I/P-FG: 1 5kVAC, 1min

O/P-FG: 0.5kVAC, 1min

Weight 0.92kg/pcs

OUR ADVANTAGES

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage.

FAQ

Q1: How many year warranty of your Led driver?
A: Two years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.

Chengdu Hao Li Electronic Technology Co., Ltd. is mainly engaged in the application design, development, production and sales of power supply and ultrasonic products. It has nearly 20 years of experience. It has in-depth cooperation with University of Electronic Science and Technology and Sichuan University. The products are mainly sold to Europe, the United States, Asia and other countries. The company has strong production capacity in power drive and intelligent control, application design of ultrasonic products, and can solve customization problems for customers.
