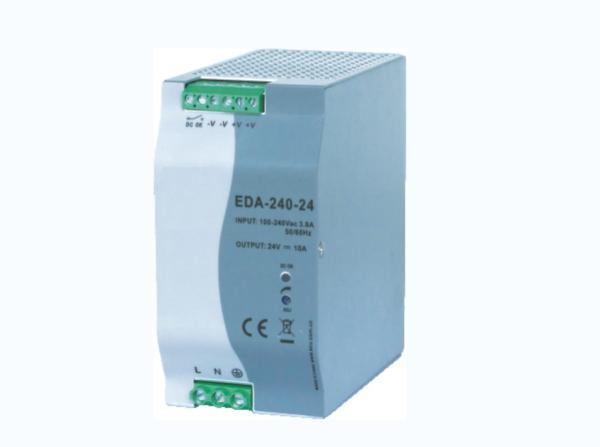

240W Single Output Industrial Power Supply
Product features
Universal AC input / full range
PF>0.99 @ 115VAC, >0.92 @ 230VAC
High efficiency up to 93%
Power on indication
Air cooling
Built-in DC OK relay contact
150% peak load capability
Optional inrush current immunity,less than 17A
Optional current sharing
Protections: Overload / Over voltage / Over temperature / Short
circuit
100% full load burn-in test
3 years warranty
Specifications
Input voltage 90VAC~264VAC, 127VDC~370VDC
Input frequency 47HZ~63Hz
Inrush current 17A @ 90~264VAC (Optional)
70A @ 230VAC
35A @ 115VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 105%~150% of full load for 3s and shutdown output voltage with
auto-recovery
Over voltage protection 120%~140%
Operating temperature -25℃~70℃(refer to output derating curve)
Safety standard EN60950-1, UL508
EMC standard EN55022 Class B,EN61000-6-2
Withstand voltage I/P-O/P: 3kVAC, 1min
I/P-FG: 1.5kVAC, 1min
O/P-FG: 0.5kVAC, 1min
Weight 0.81kg/pcs
Our Advantages
OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of
switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times
testing
With high reliability,105℃long life capacitor,can withstand
300VAC,input voltage 5 seconds without damage
| P/N | Output | Tol. | R&N | Effi. | Load Regulation | DC Adjustment Range |
| EDA-240-12 | 12V,16A | ±1% | 100mV | 91% | ±1% | 12V~14V |
| EDA-240-24 | 24V,10A | ±1% | 120mV | 93% | ±1% | 24V~28V |
| EDA-240-48 | 48V,5A | ±1% | 150mV | 93% | ±1% | 48V~53V |
FAQ
Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding
aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with
large order,we can apply for it.
