Parallel Redundant High Power Power Supply , 480W Air Cooling Mining Power Supply

480W Single Output Industrial Power Supply

Product features

Universal AC input / full range
PF>0.99 @ 115VAC, >0.96 @ 230VAC
High efficiency up to 94%
Power on indication
Air cooling
Built-in DC OK relay contact
Parallel redundant function (1+1)
150% peak load capability
Protections: Overload / Over voltage / Over temperature / Short circuit
100% full load burn-in test
3 years warranty

Specifications

Input voltage 90VAC~264VAC, 124VDC~370VDC

Input frequency 47HZ~63Hz

Inrush current 35A @ 230VAC

20A @115VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 105%~150% of full load for 3s and shutdown output voltage with auto-recovery
Over voltage protection 120%~140%

Operating temperature -25℃~70℃(refer to output derating curve)

Safety standard EN60950-1, UL508

EMC standard EN55022 Class B,EN61000-6-2
Withstand voltage I/P-O/P: 3kVAC, 1min

I/P-FG: 1 5kVAC, 1min

O/P-FG: 0.5kVAC, 1min

Weight 1.32kg/pcs

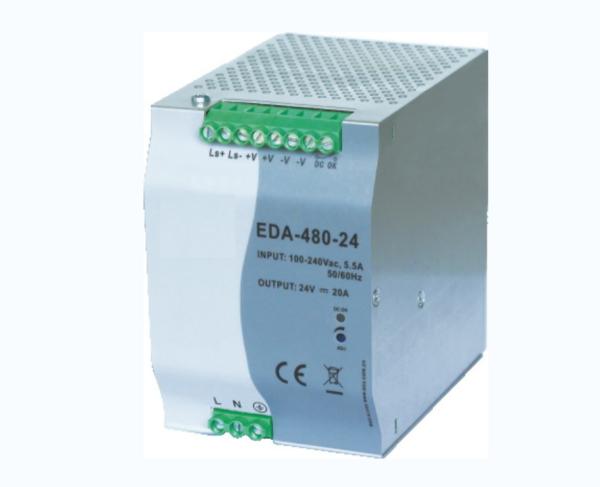

Din-Rail type 480W Switching Power Supply(EDA Series)

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.

P/N	Output	Tol.	R&N	Effi.	Load Regulation	DC Adjustment Range
EDA-480-24	24V,20A	±1%	100mV	94%	±2%	24V~28V
EDA-480-36	36V,13.5A	±1%	150mV	94%	±2%	36V~40V
EDA-480-48	48V,10A	±1%	150mV	94%	±2%	48V~55V
