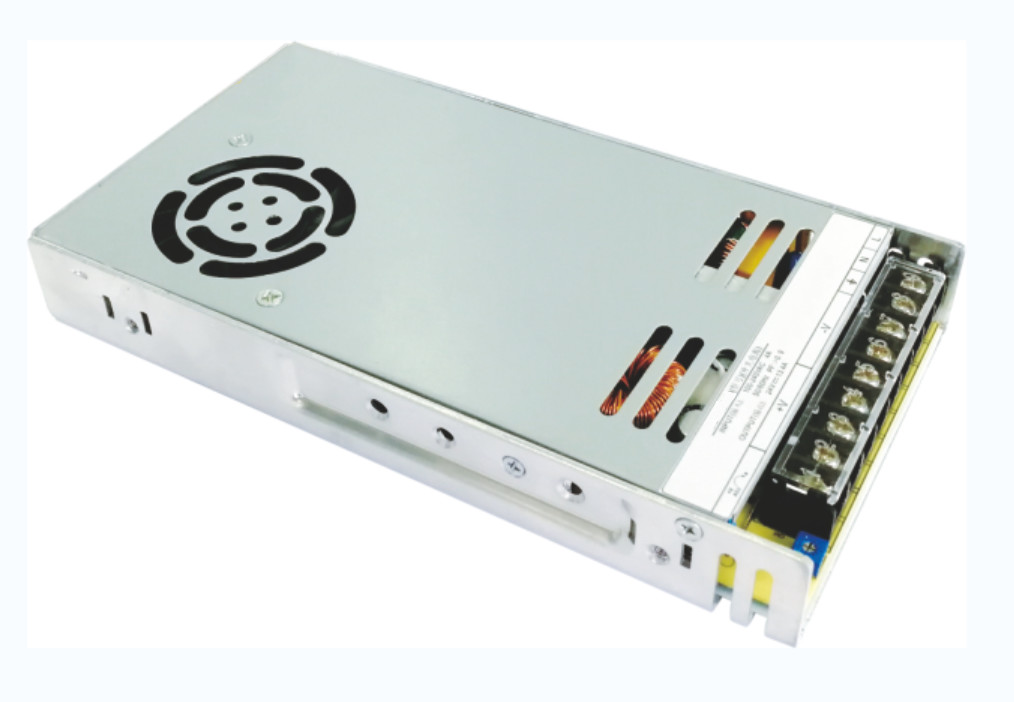

75W Single Output (with PFC) Industrial Power Supply
Product features
Universal AC input / full range
PF>0.96@115VAC, >0.93 @ 230VAC
Built-in remote ON/OFF control
Standby power consumption≤0.5W
Power on indication
Integrated design, small size
Protection: Overload / Over voltage / Short circuit / Over
temperature
100% full load burn-in test
3 years warranty
Specifications
Input voltage 90VAC~264VAC
Input frequency 47HZ~63Hz
Inrush current 40A @ 230VAC
20A @ 110VAC full load cold start
Hold up time ≥20ms @ 230VAC full load
Overload protection 105%~150%
Over voltage Protection 105%~140%
Operating temperature -20℃~70℃ (refer to output load derating curve)
Safety standard UL60950-1, EN60950-1
EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min
I/P-FG: 1.5kVAC, 1min
O/P-FG: 0.5kVAC, 1min
Weight 0.42kg/pcs
Our Advantages
OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of
switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times
testing
With high reliability,105℃long life capacitor,can withstand
300VAC,input voltage 5 seconds without damage
FAQ
Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding
aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with
large order,we can apply for it.
| P/N | Output | Tol. | R&N | Effi. | Load Regulation |
| ESF-75-5 | 5V,15A | ±2.5% | 100mV | 80% | ±2% |
| ESF-75-12 | 12V,6.3A | ±1.5% | 100mV | 87% | ±1% |
| ESF-75-24 | 24V,3.2A | ±1.5% | 150mV | 88% | ±1% |
| ESF-75-48 | 48V,1.5A | ±1.5% | 240mV | 90% | ±1% |
