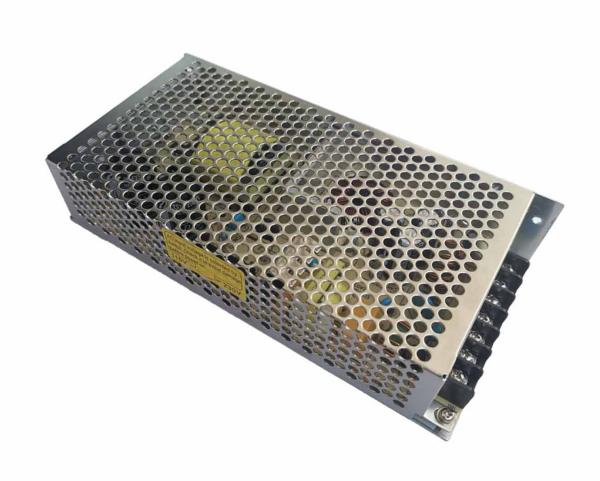

EN55022 Class B Industrial Power Supply 150 Watt Power Short Hold Up Time

Ask Lasest Price
Brand Name :	HAOLI
Certification :	CE，ISO9001，ROHS
Payment Terms :	L/C, D/A, D/P, T/T
Delivery Time :	10 work days
Price :	Negotiation

Add to Cart

Product Details
Company Profile

EN55022 Class B Industrial Power Supply 150 Watt Power Short Hold Up Time

150W Single Output (with PFC) Industrial Power Supply

Product features

Universal AC input / full range

PF>0.99 @ 115VAC, >0.95 @ 230VAC

Built-in remote ON/OFF control

Standby power consumption≤0.5W

Power on indication

Integrated design, small size

Protection: Overload / Over voltage / Short circuit

100% full load burn-in test

3 years warranty

Specifications

Input voltage 90VAC~264VAC

Input frequency 47HZ~63Hz

Inrush current 70A @ 230VAC

35A @ 110VAC full load cold start

Hold up time >16ms @ 230VAC full load
Overload protection 105%~150%
Over voltage protection 105%~140%

Operating temperature -40℃~70℃(refer to output load derating curve)

Safety standard UL60950-1, EN60950-1

EMC standard EN55022 Class B, EN55024
Withstand voltage I/P-O/P: 1.5kVAC, 1min

I/P-FG: 1.5kVAC, 1min

O/P-FG: 0.5kVAC, 1min

Weight 0.58kg/pcs

EN55022 Class B Industrial Power Supply 150 Watt Power Short Hold Up Time

P/N	Output	Tol.	R&N	Effi.	Load Regulation
ESF-150-12	12V,12.5A	±2%	120mV	90%	±1%
ESF-150-24	24V,6.3A	±1%	200mV	91%	±0.9%
ESF-150-36	36V,4.2A	±1%	300mV	91%	±0.9%
ESF-150-48	48V,3.2A	±1%	300mV	92%	±0.9%

FAQ

Q1: How many year warranty of your Led driver?
A: Three years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.
