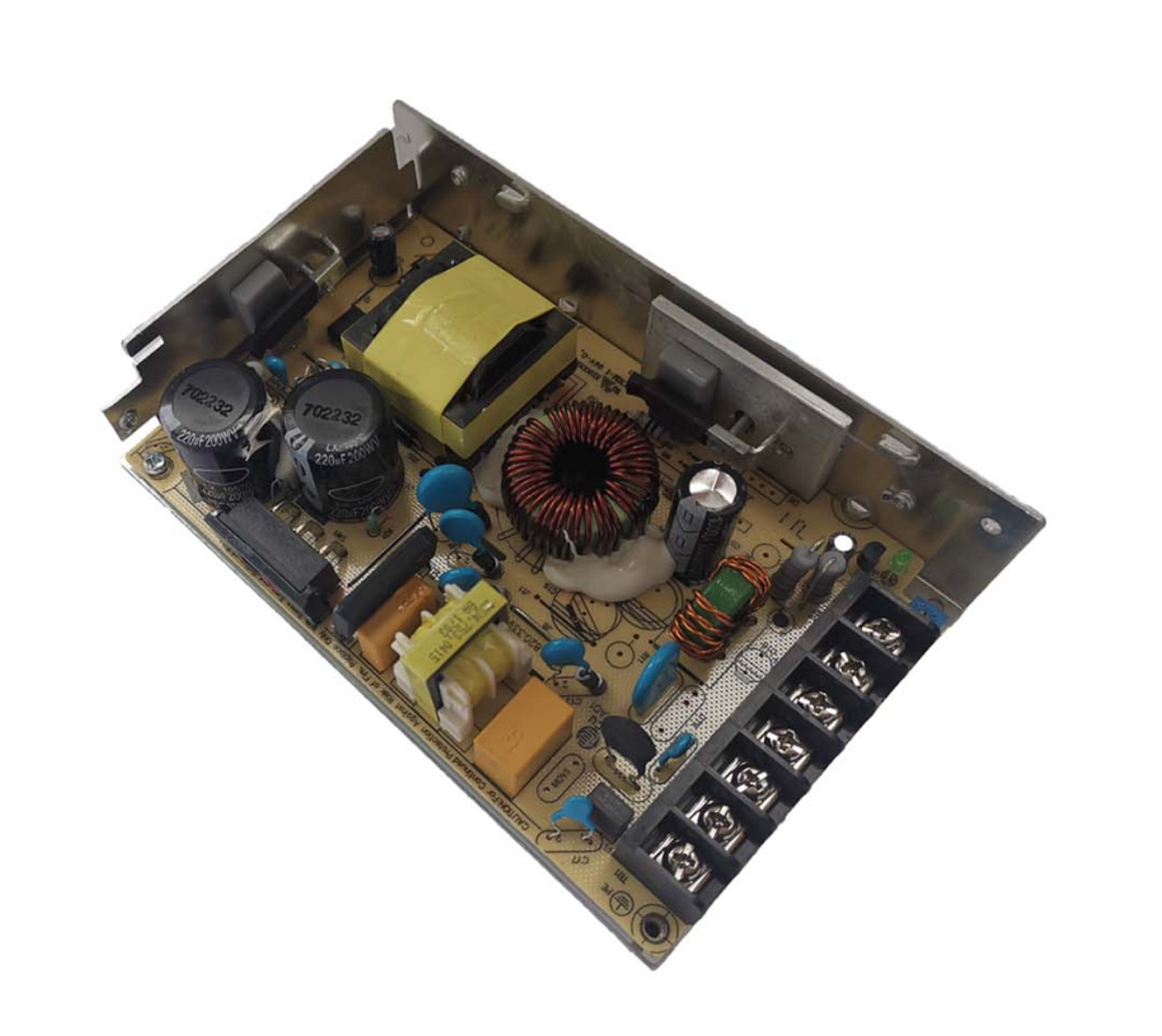

70W Single Output (Full range input) Industrial Power Supply

Product features

Universal Ac input/ full range

Power on indication

Air cooling
Protection for over discharged battery

Protections: Overload / Short circuit

Metal case, Compact
100% full load burn-in test

1 year warranty

Specifications

Input voltage 90VAC~264VAC

Input frequency 47HZ~63Hz

Inrush current 40A @ 220VAC full load cold start

Hold up time ≥20ms @ 230VAC
Overload protection 105%~180% of the rated output power

Operating temperature -20℃~40℃

Safety standard GB4943- 2001, EN60950-1

EMC standard EN55022 Class B, EN55024
Withstand voltage l/P-O/P: 1 .5kVAC, 1min

I/P-FG: 1.5kVAC, 1min

O/P-FG: 0.5kVAC, 1min

Weight 0.45kg/pcs

Our Advantages

OEM&ODM SERVICE
This company is engaged in the design,manufacture and sale of switching power series
LONG-TIME BURN-IN TEST
Each of the switch power is extremely safe and stable after 5 times testing
With high reliability,105℃long life capacitor,can withstand 300VAC,input voltage 5 seconds without damage

FAQ

Q1: How many year warranty of your Led driver?
A: One years
Q2: Do you have switch power factory?
A: Yes.We are OEM&ODM manufacturer in Chengdu
Q3: Do you offer sample of power?
A: Yes.We offer free sample ,but you need pay the shippment.
Q4: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
Q5: Do you have any certification?
A: Yes.We have CE,ISO9001,ROHS,if you need other certification with large order,we can apply for it.

Chengdu Hao Li Electronic Technology Co., Ltd. is mainly engaged in the application design, development, production and sales of power supply and ultrasonic products. It has nearly 20 years of experience. It has in-depth cooperation with University of Electronic Science and Technology and Sichuan University. The products are mainly sold to Europe, the United States, Asia and other countries. The company has strong production capacity in power drive and intelligent control, application design of ultrasonic products, and can solve customization problems for customers.
